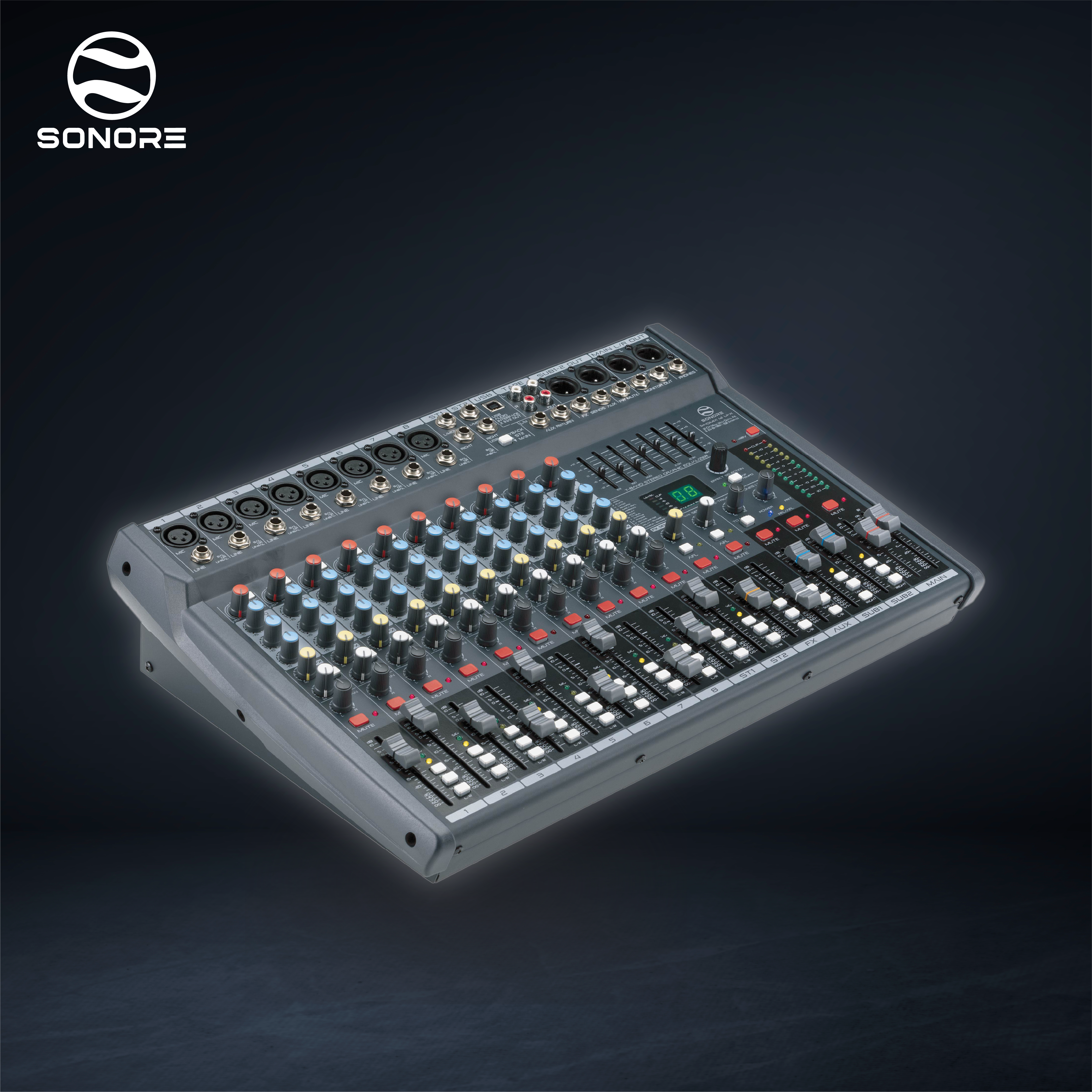

SONORE 12 Channel SINOMIX Series Stereo Mixer With Digital FX & 24 BIT/96K & USB Interface

RM1,258.00

In stock

SKU: PLYSINOMIX12UFX Category:

12UFX

Specifications :
Maximum input level: MIC +24dBu
Line +24dBu
Other Line +20dBu
Maximum output level : XLR +26dBu
TRS +20dBu
Master meters : 12 segment -30dB to CLIP
Channel meters : 1 LED signal indication
Frequency response : 20Hz to 30KHz 0.5dB
CMRR MIC 1KHz : 75dB
THD+N : <0.01% (Channel to mix out)
Crosstalk at 1KHz : Fader shutoff 85dB
Mute shutoff 85dB
Inter channel 82dB
Noise, rms 22Hz to 22KHz : EIN -22dBu
Residual output noise -90dBu
L/R main mix noise
Aux mix noise -82dBu
Mono EQ : LF shelving +/-15dB 12KHz
HM peak/dip +/-15dB 2.5KHz
LF shelving +/-15dB 8Hz
Stereo EQ : LF shelving +/-15dB 12KHz
HM peak/dip +/-15dB 2.5KHz
LF shelving +/-15dB 8Hz
Mono Channel : XLR balanced, pin 2 hot 2ohm, sensitivity -60 to +14dBu
TRS balanced, tip hot, 10K ohm, Sensitivity -40 to +14dBu
XLR, phantom +48V
Stereo Channel : TRS unbalanced, tip hot, 10K ohm, Sensitivity -40 to +14dBu
2-track return : RCA, unbalanced, 4K ohm -2dBu
2-track send : RCA, unbalanced, 75 ohm -2dBu
DSP effect processor : 24-bit sigma-delta, 64/128-timer over sampling, rate 40KHz
L/R output : XLR balanced, pin 2 hot, 75 ohm +4 dBu Max.+22dBu
SUB 1-2 output : XLR balanced, pin 2 hot, 75 ohm +4 dBu Max.+22dBu
FX/AUX output : TRS balanced, tip hot, 75 ohm -2 dBu Max.+18dBu
Headphones : TRS tip L, ring R 30 to 600 ohm headphone recommended
Max. Power input power : Mixing console type 40 watts
Power mixer 1000 watts

Dimensions : 46.8 x 32.2 x 7.8 cm
