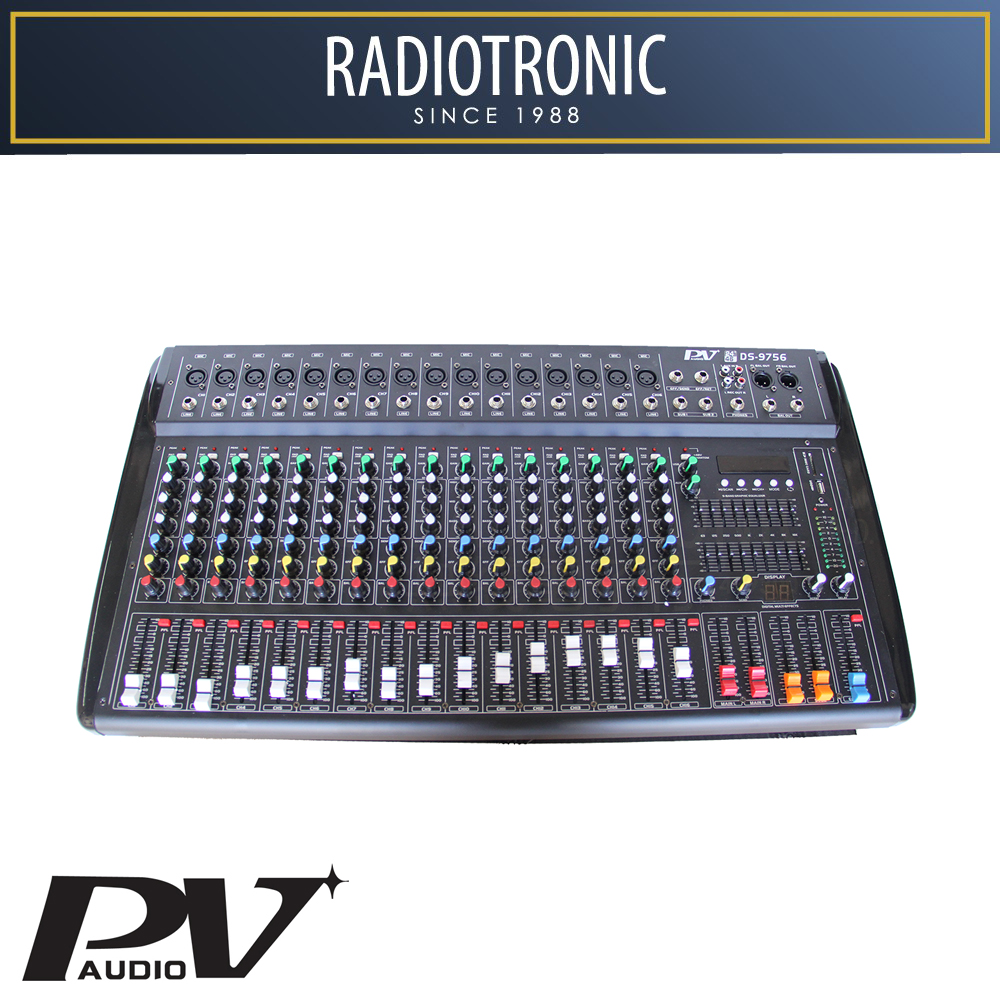

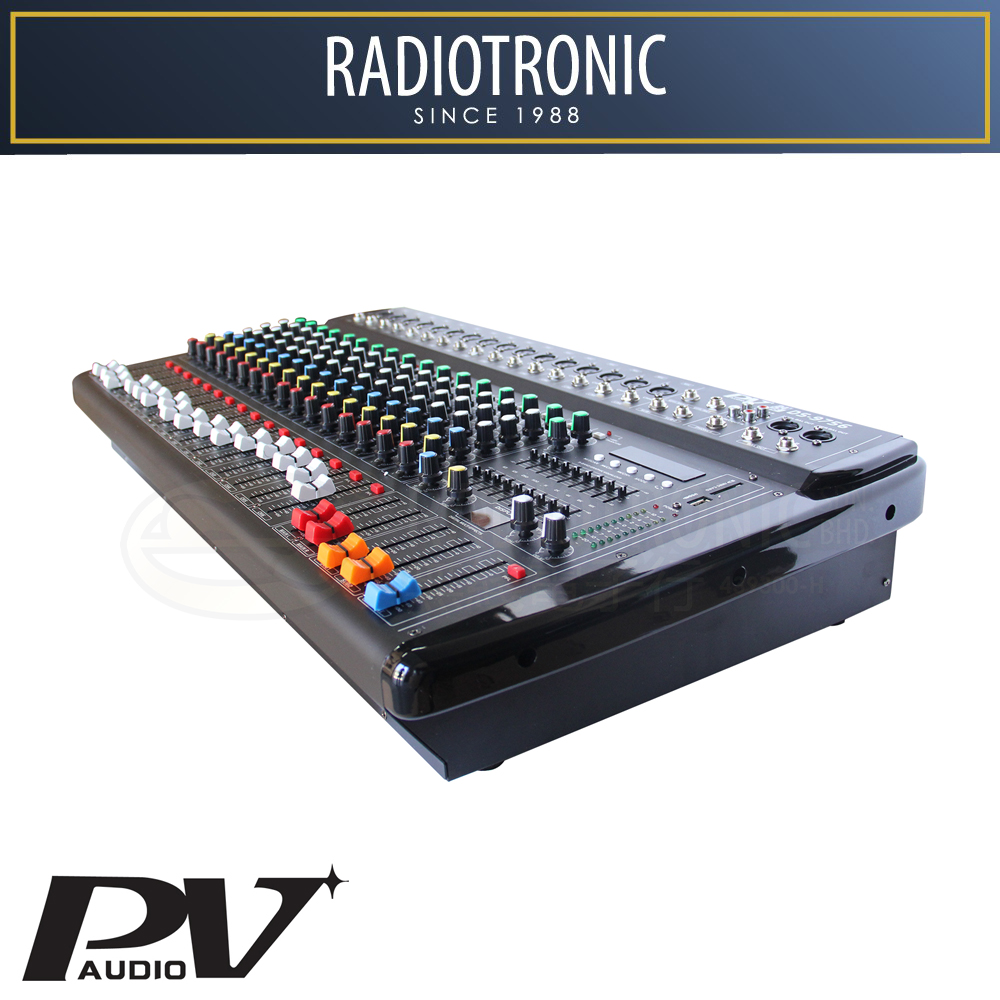

PV AUDIO DS9756 16 CHANNEL POWER MIXER

Features
• DIGITAL DELAY
Delay system in HI-FI will help acquire better echo effect.
• EFFECT GRADE ADJUST AND DISPLAY
Effect grade adjust, with display screen.
• GAIN CONTROL/PEAK LED
Use Gain Control and Peak Led to control input signal and prevent
distortion caused by overload.
• TAPE INPUT/REC OUTPUT
Connect with cassette to play or record.
• HEADPHONES PRE MONITOR
• XLR microphone input, provides a 48V phantom power for meeting room microphone.
• With USB and SD interface design, supports a wide range of removable storage devices. Using double decoding USB.

SPECIFICATIONS
AC Input : 800W +80OW
Output Power : ~220-240V 50/60Hz
Input Sensitivity : MIC 2mV-1; LINE 2mV-9V
Earphone : 900mV
Tape : 1V
EQ : HI ±15dB/ 10KHz;
MID ±15dB/ 2.5KHz;
LOW ±15dB/ 80Hz
Line Output (MAX) : 4V Max
SNR : ≥ 71dB
THD : ≤ 0.1%
Package Size : 800 x 490 x 205 mm
Package Weight 20.5 Kg
Frequency Response : 20Hz – 20KHz ±2dB
