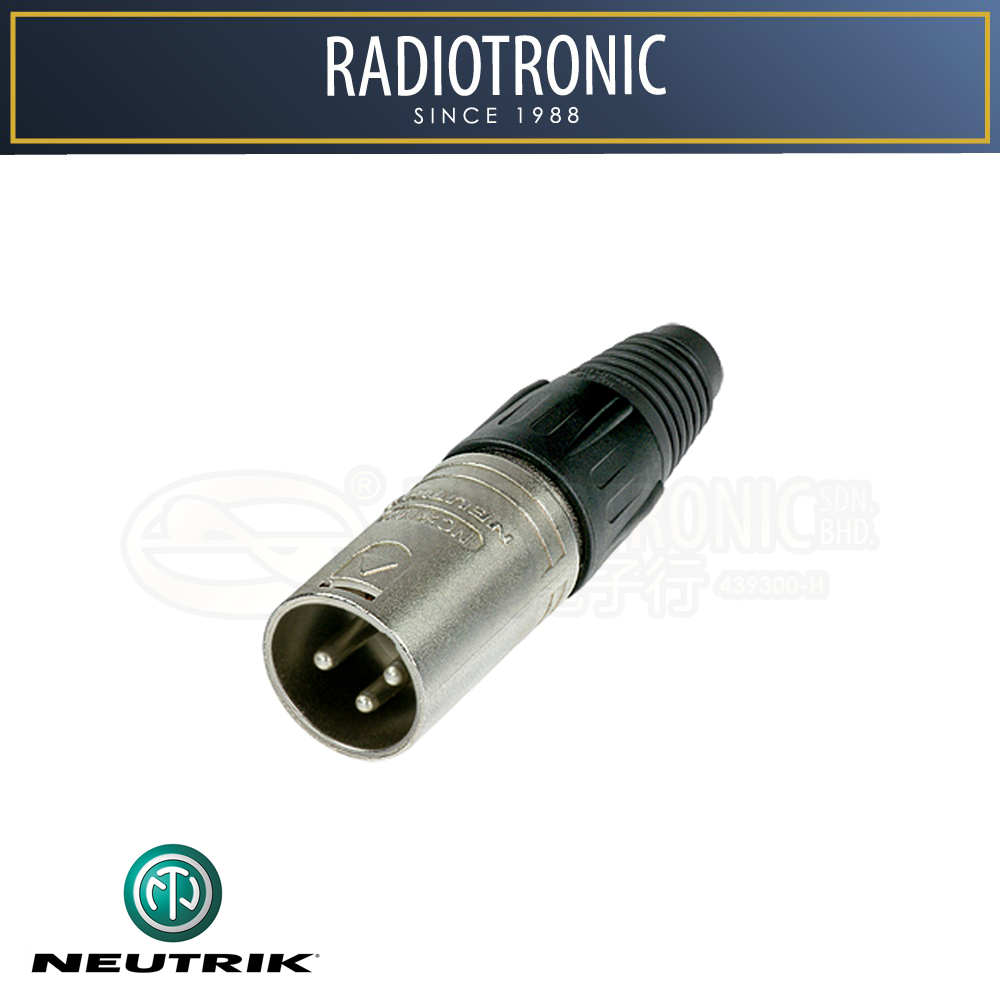

Neutrik MNC-3MX-XLR 3 Pin XLR Plug (NC3MXX)

3 pole male cable connector with Nickel housing and silver contacts. The “industry standard” XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

• Rugged zinc diecast shell, long lasting and durable
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses
• Coloured rings and boots available for coding and marking
• UL recognized components

ELECTRICAL
Capacitance between contacts : ≤ 4 pf
Contact resistance : ≤3 mΩ
Dielectric strength : 1.5 kVdc
Insulation resistance : > 10 GQ (initial)
Rated current per contact : 16 A
Rated voltage : < 50 V

MATERIAL
Boot : Polyurethan
Contact plating : 2 µm Ag over 2 µm Ni
Contacts : Bronze (CuSn8]
Insert : Polyamide (PA 6.6 30% GR)
Locking element : St3K32 (latch)/Ck 67 (spring)
Shell : Zinc diecast (ZnA14Cul)
Shell plating : Nickel
Strain relief : Polyacetal (POM)

MECHANICAL
Cable O.D. : 3.5-8.0 mm
Insertion force : <20 N
Withdrawal force : ≤ 20 N
Lifetime : >1000 mating cycles
Wiresize : max. 2.5 mm
Wiresize : max. 14 AWG
Wiring : Solder contacts
Locking device : Latch lock

ENVIRONMENTAL
Approvals : UL
Flammability : UL 94 HB
Standard compliance : IEC 61076-2-103
Protection class : IP 40
Solderability : Complies with IEC 68-2-20
Temperature range : -30 °C to +80 °C
