Maruni MR-266 Wireless Microphone
RM670.00
- UHF 600-700 frequency range for stable signal reception
- 200 selectable frequencies for multiple sets to be used simultaneously
- Sync IR technology for automatic transmitter and receiver frequency synchronization
- LCD display on both transmitter and receiver for easy operation
- High-quality audio with clear bass, midrange, and treble
- Noise interference avoidance and expanded dynamic range with audio compressing-companding technology
- Long-lasting 1.5V transmitter batteries for user convenience

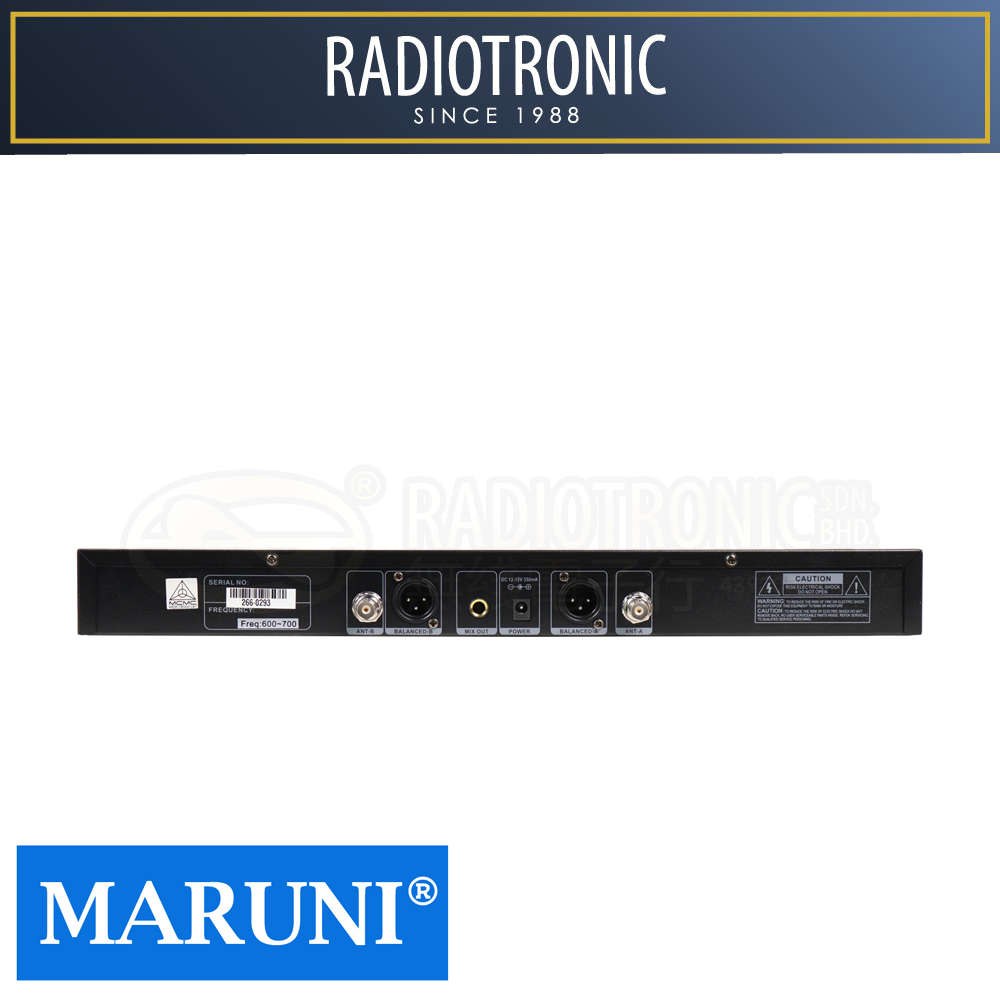

- Balanced and unbalanced output options for versatile audio equipment connections
- Durable, high-strength alloy construction for receiver and handheld microphone
- Low power indicator for timely battery replacement
- Choice of handheld, lavalier, and headset microphones to suit different occasions.
With UHF 600 ~ 700 frequency range designed, the signal receiving is more stable.
200 frequencies can be chosen, which make it very convenient to use several sets at the same time
Sync IR synchronization frequency technology adopted, the frequency of the transmitter can be received automatically by the sync IR signal and synchronously with the receiver
The receiver and the transmitter have LCD display screen, displaying the working frequency, the operation is simple, direct and convenient. Thick bass, light mediant and clear alt can be delivered
The system can avoid noise interference and enlarge the dynamic range for the audio compressing-companding technology. Two 1.5V batteries are used in the transmitter, the battery lift is long, and it is convenient for user to buy, maintain and replace. Balance independent and unbalance mix output design in the receiver, it is suitable for all kinds of audio equipment to connect. The receiver and hanheld microphone are made of high strength alloy that it is sturdy and durable
Low power indicator of microphone helps to replace the battery in time.
Handheld, lavalier and headset microphone can be chosen to match with the receiver to meet the requirement of different occasion.
Comprehensive feature:
Frequency Range : UHF 470-900 MHz
Frequency Response : 40Hz – 18kHz
Frequency Stability : < ±30dB
Modulation Mode : wide-band FM
Modulation Range : 25MHz
Total channel : 200 channels
Working distance : 60m
Channel spacing : 250 KHz
Dynamic Range : 100dB
Maximum Deviation : +45KHz
AF Response : 65Hz-15KHz (±3 dB)
Total Harmonic Distortion : <0.5%
Audio Output Balance : 0-±500mV
Transmitter
Frequency Oscillation Mode : Anolog system
Transmitter Power : 10mW
Modulation Mode : FM
RF output : 10mW
Bandwidth : 50MHZ
Frequency Interval : 250KHZ
Maximum Deviation : +50kHz
High Harmonics : >40dB (with carrier)
Battery Voltage : AA 1.5V x 2
Battery Life : 8-10 hours
Receiver
Power supply : AC 220-240V, 50/60Hz
DC Adaptor output power : 13-15V, 500mA
Power consumption : 7W
S/N Ratio : >90dB
P/N Ratio : >80dB
F/N Ratio : >80dB
Receive sensitivity : 5dBu
SPECIFICATIONS
Package Dimension
51.5 x 12 x 26.5 cm
Package Weight
2.96 kg
Additional information
| Weight | 2.96 kg |
|---|---|
| Dimensions | 51.2 × 12 × 26.5 cm |
