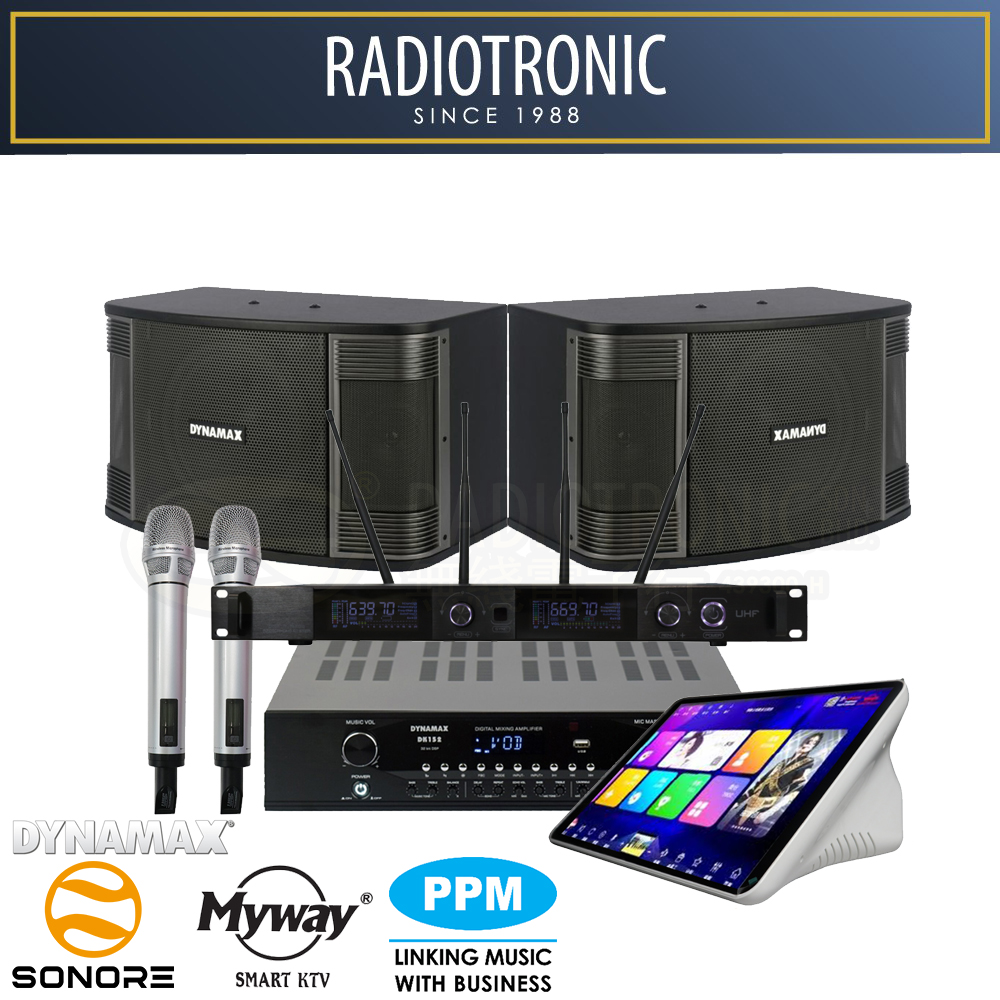

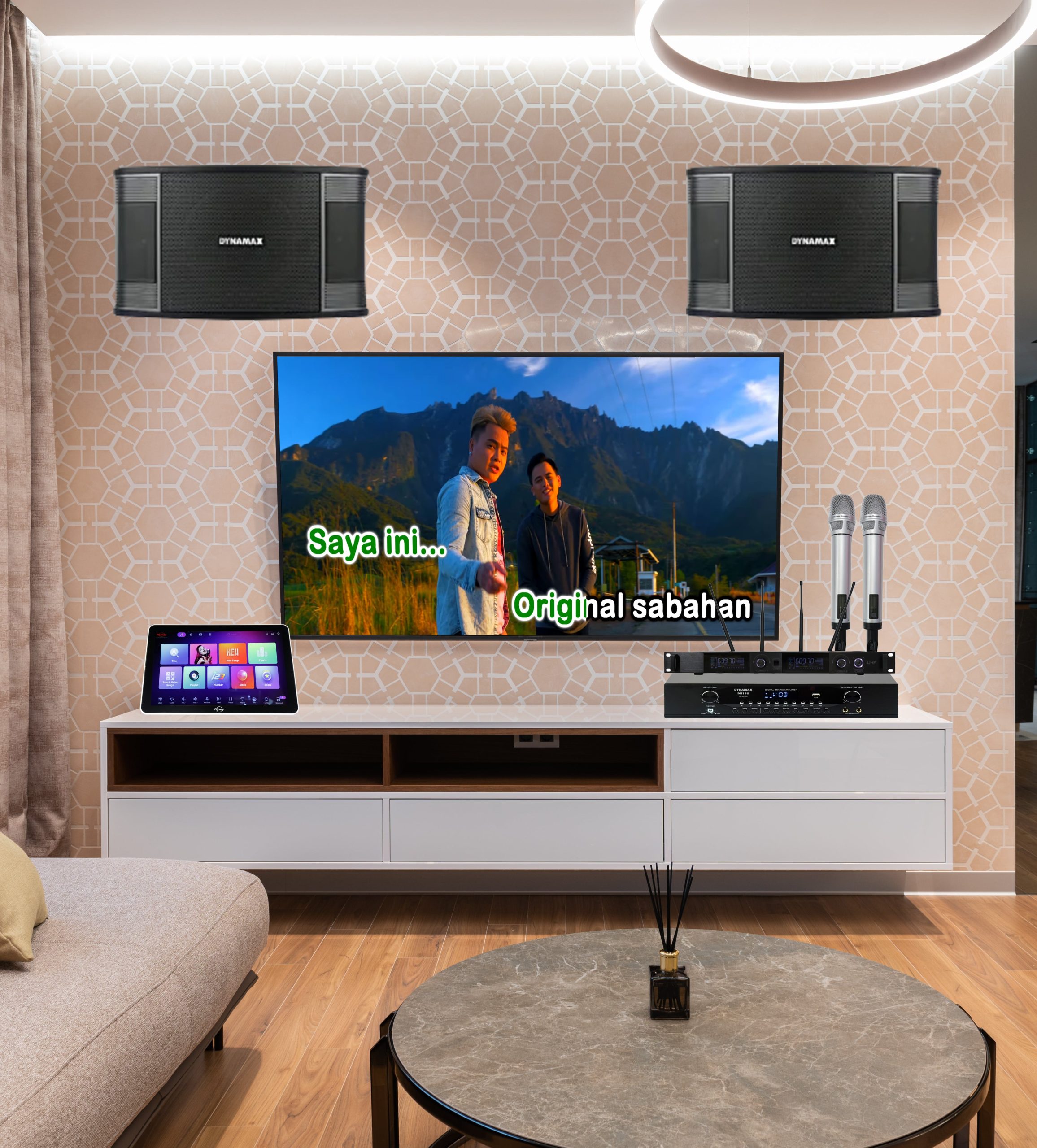

Karaoke KTV Package
– DYNAMAX DKS355 10″ 120W Professional Karaoke Speaker
10” solid woofer backed by sturdy cabinet for clear mid & powerful bass
Dual magnets reliable paper cone tweeter (3”) in delivering crystal clear highs
Wall/ceiling mountable
Built-in high quality 2-way audio crossover
Crossover with overload protection (high frequencies) circuit design
Power : 120W (RMS), 240W (Peak)
Type: 2 Way, 3 Speaker
Woofer: 10” x 1
Tweeter: 3” x 2
Sensitivity: 90dB / 1W / 1m
Frequency Response: 50Hz – 20kHz
Crossover Frequency: 1.5kHz
Impedance: 8 ohms
Product Dimension (W x D x H): 520 x 295 x 298 mm
Net Weight : 18 kg
– DYNAMAX DK152 150W Digital Echo Karaoke Amplifier With 32bit DSP, Bluetooth, USB
150W (RMS) x 2ch (8 ohm) high power karaoke amplifier with built in 32bit/48K Hz audio digital signal processor (DSP)
Built-in speaker system terminals with impedance of 4-8 ohm
Built-in exhaust fan for heat ventilation
2U Aluminum alloy panel
With remote control
Audio Input : Bluetooth 5.0 wireless and USB music signal input connection
Mic Input : 2 x 6.3mm (Front Panel), 2 x 6.3mm (Rear Panel)
Built-in DVD / VOD video input
Built-in DVD / VOD / TAPE audio input
Built-in DVD / VOD video
Built-in Sub Woofer Bass signal output
Adjustment memory key control for ± 5 steps music tone tuning function
Adjustment memory feedback canceler (FBC) suppression with 4 level control function
Adjustment memory mic volume function
Adjustment memory music volume function
Built in MS DSP mode
Music and Mic tone adjustment control : Bass, Treble, Balance
Music ECHO delay and repeat control
Mic ECHO level control
Mic volume control independently
– Myway Party KS – Karaoke Player
– 4TB storage (50000 songs)
– Easy to Install
– 1920×1080 resolution;
– full viewing angle
– 5000:1 contrast ratio; 16:9
– handphone selection
– With PPM License
– Sonore PU-2299 Wireless Microphone, Silver Color (With MCMC)
SPECIFICATION (TECHNICAL PARAMETER)
Frequency Range : UHF 510-693 MHz
Frequency Response : 40Hz-20KHz
Frequency Stability : ±0.005%
Modulation Mode : Pi/4 DQPSK
Modulation Range : 25MHz
Total Channels : 240 channels
Working Distance : 150 m
Channel Spacing : 250 KHz
Dynamic Range : 100dB
Maximum Deviation : +45KHz
AF Response : 65Hz-15KHz (±3 dB)
T.H.D. : < 0.5%
Audio Output Balance : 0-±500mV
SPECIFICATION (TECHNICAL PARAMETER : RECEIVER)
Power Supply : AC 100-240V, 50/60Hz
DC Adaptor Output Power : 13-15V, 800mA
Power Consumption : 5W
S/N Ratio : > 98dB
P/N Ratio : > 80dB
F/N Ratio : > 80dB
Receive Sensitivity : When input 6dBuV~ -10dBUV, S/N >85dB
SPECIFICATION (TECHNICAL PARAMETER: TRANSMITTER)
Frequency Oscillation Mode : Digital synthesized
Transmitter Power : High 30Mw, Low 3mW
Modulation Mode : Pi/4 DQPSK
Tunable Bandwidth : 60MHz (240CH)
Frequency Interval : 250KHZ
Maximum Deviation : +45kHz
Harmonics Radiation : <-55dBc
Battery Voltage : AA 1.5Vx2
Battery Life : 8-10 hours (3000mA)
Box Packaging Dimensions : 51.4 x 12 x 6.7 cm
Net Weight : 1.95kg
Gross Weight : 3.57kg
