Kameha Ultra HD/UHD TV Extension System with IR
RM584.60
This package include :
KAMEHA KA176 HDMI EXTENDER 70M WITH IR POC & EXTERNAL ROUTE 4K30HZ
2 x KAMEHA KA110 HDMI TO HDMI V2.0 3METER NYLON
70 meter BELNET BRAND CA370 CAT6 CABLE COPPER (BY METER)
2 pcs CAT6 PLUG CMPSNL-TPCAT6
Expand your entertainment horizon with the Kameha Ultra HD/UHD TV Extension System! 🌐📺 Extend the joy to every corner of your home – from the cozy living room to the kitchen and bedroom. This comprehensive package includes the Kameha KA176 HDMI Extender (70M) with IR POC & External Route 4K30Hz, ensuring stunning visuals in every room. The 2 Kameha KA110 HDMI to HDMI V2.0 3-Meter Nylon cables provide flexibility, while the 70-meter Belnet Brand CA370 Cat6 Cable and 2 Cat6 plugs offer seamless connectivity. Elevate your home entertainment experience for just RM584.60. Connect, extend, and enjoy! 🏡✨
This package include :
KAMEHA KA176 HDMI EXTENDER 70M WITH IR POC & EXTERNAL ROUTE 4K30HZ
2 x KAMEHA KA110 HDMI TO HDMI V2.0 3METER NYLON
70 meter BELNET BRAND CA370 CAT6 CABLE COPPER (BY METER)
2 pcs CAT6 PLUG CMPSNL-TPCAT6
KA176 HDMI EXTENDER 70M WITH IR POC & EXTERNAL ROUTE 4K30HZ
This HDMI Extender can extend high definition video/audio signal and IR control signal up to 230ft/70m for 1080p resolution, and 131ft/40m for 4K30 resolution via a single CAT6 cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz. It supports EDID copy function (you can choose local or remote EDID). It supports audio formats up to PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching and large-screen displays.
Features
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- Support video resolution up to 4k2k@30Hz YUV 4:4:4
- The maximum transmission distance via a single CAT6/5E cable is as follows:
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
- Support copying EDID from receiver display or loop out display
- Allow for cascading via additional HDMI loop out port
- Support one-way POC functionality (from transmitter to receiver)
- One-way IR signal transmission
- Compact design for easy and flexible installation
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Video Resolution | Up to 4K@30Hz |
| Audio Support | Up to 7.1CH HD audio |
| Input TMDS Signal | 3.3 volts |
| Input DDC Signal | 5.0 volts/P-P |
| ESD Protection | Human Body model:+/- 8 kV (air-gap discharge)
+/- 4 kV (contact discharge) |
| Connection | |
| Transmitter | Input: 1 x HDMI Type A [19-pin female]Outputs:1 x HDMI Type A [19-pin female]
1 x IR OUT [3.5mm Stereo Mini-jack] 1 x CAT OUT [RJ45, 8-pin female] |
| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 79.5mm[W] x 69mm[D] x 16.5mm[H] |
| Weight | Transmitter: 132g, Receiver: 130g |
| Power Supply | 12V/1A DC |
| Power Consumption | Transmitter: 1.86W, Receiver: 0.87W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
Operation Controls and Functions
Transmitter Panel
| No. | Name | Function Description |
| 1 | HDMI IN | HDMI signal input port. Connect to HDMI source device such as DVD or Set-top box. |
| 2 | EDIDDIP switch | The switch is used for selecting EDID:Switch to the right position, the extender will copy HDMI loop out display EDID information to signal source; Switch to the left position, the extender will copy Receiver display EDID to signal source. |
| 3 | HDMI OUT | HDMI signal loop out port. Connect to HDMI display device such as HDTV. |
| 4 | IR OUT | Connect to IR blaster cable, the IR signal is from the IR IN port of the receiver. |
| 5 | Power LED | When the transmitter is powered on, the LED will be on. |
| 6 | CAT | CAT output port. Connect to the CAT input port of the receiver with CAT5E/6 cable. |
| 7 | Digital signal indicator light |  Light on: HDMI signal with HDCP. Light flashing: HDMI signal without HDCP.
|
| 8 | DC 12V | DC 12V power supply port. |
Receiver Panel
| No. | Name | Function Description |
| 1 | HDMI OUT | HDMI signal output port. Connect to HDMI display device such as HDTV. |
| 2 | IR IN | Connect to IR receiver cable, the IR signal will emit to the IR OUT port of the transmitter |
| 3 | Power LED | When the receiver is powered on, the LED will be on. |
| 4 | CAT | CAT input port. Connect to the CAT output port of the transmitter with CAT5E/6 cable. |
| 5 | Digital signal indicator light | Light on: HDMI signal with HDCP. Light flashing: HDMI signal without HDCP.
|

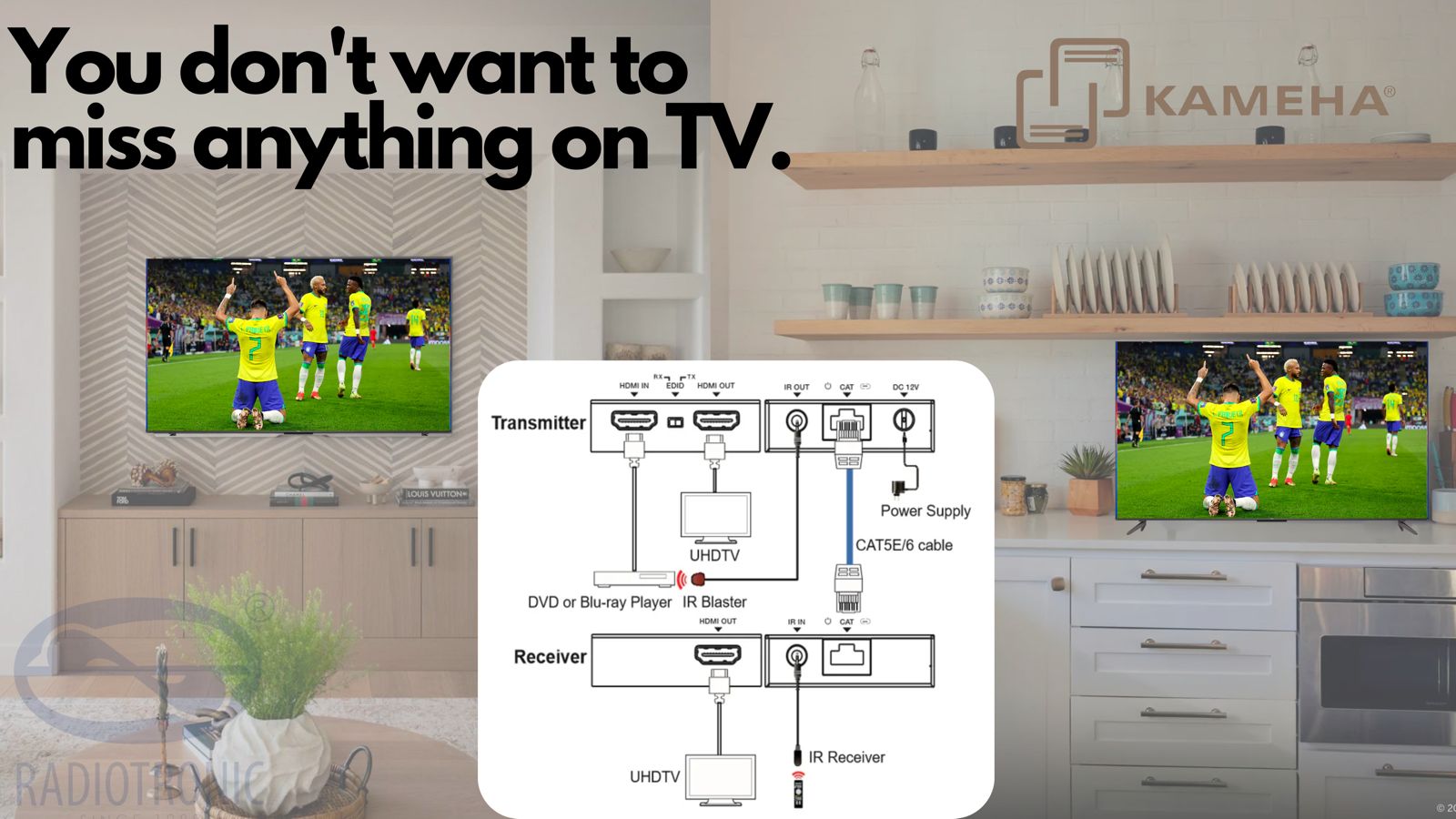

Application Example
ADDITIONAL INFORMATION
| WEIGHT | 0.54 kg |
|---|---|
| DIMENSIONS | 22 × 11.5 × 7.5 cm |
| WARRANTY | 1 Year Warranty |
| WHAT’S IN THE BOX | 1* HDMI Transmitter 1* HDMI Receiver 1* IR Blaster Cable (1.5 meters) 1* IR Receiver Cable (1.5 meters) 1* 12V/1A DC Power Adapter 1* User Manual |
KA110 HDMI TO HDMI V2.0 3METER NYLON – KAMEHA
24K gold-plated
Zinc alloy shell ,laser 1 HDMI logo, one KAMEHA Logo
Special print on the Wire: 30AWG High speed HDMI cable with Ethernet
With Nylon mesh
Pure copper core,30AWG,OD:6.0mm
ADDITIONAL INFORMATION
| WEIGHT | 0.3 kg |
|---|---|
| DIMENSIONS | 16 × 24 × 7 cm |
| WARRANTY | 3 Months Warranty |
| WHAT’S IN THE BOX | 1* HDMI To HDMI V2.0 3Meter Nylon |
