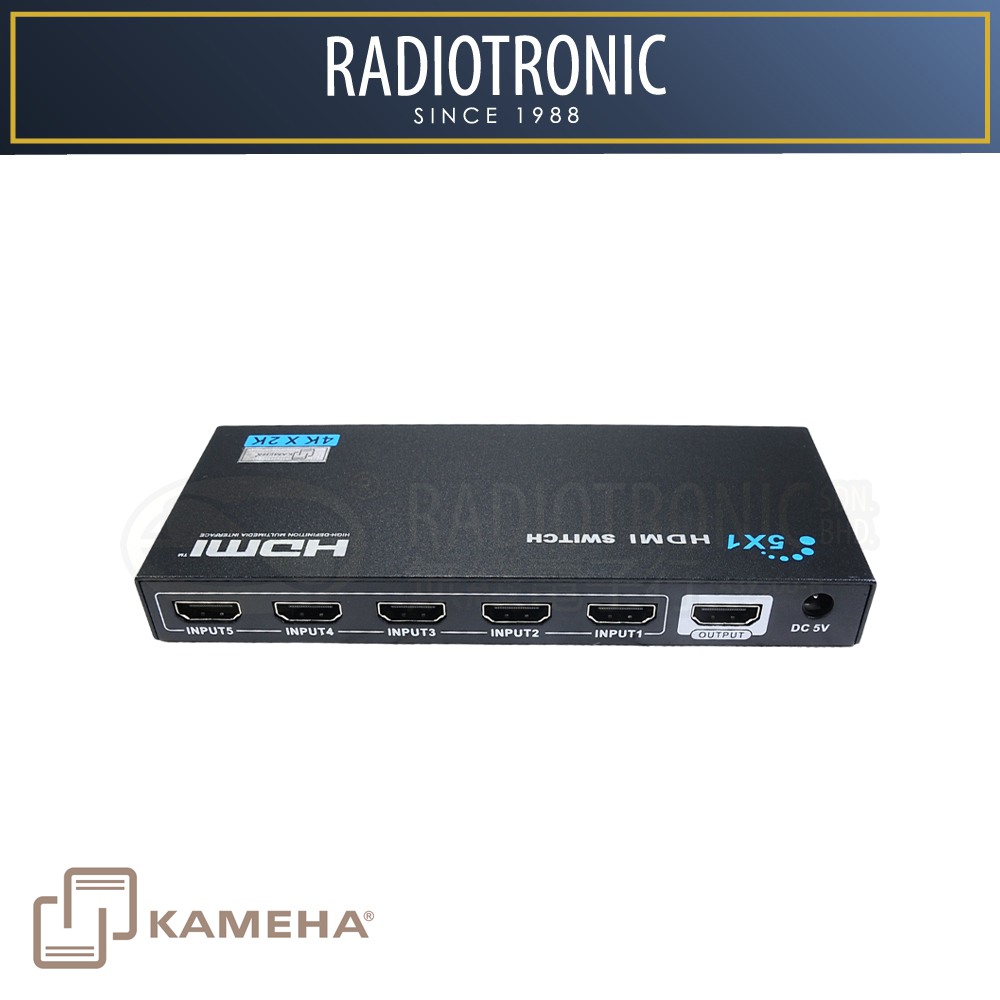

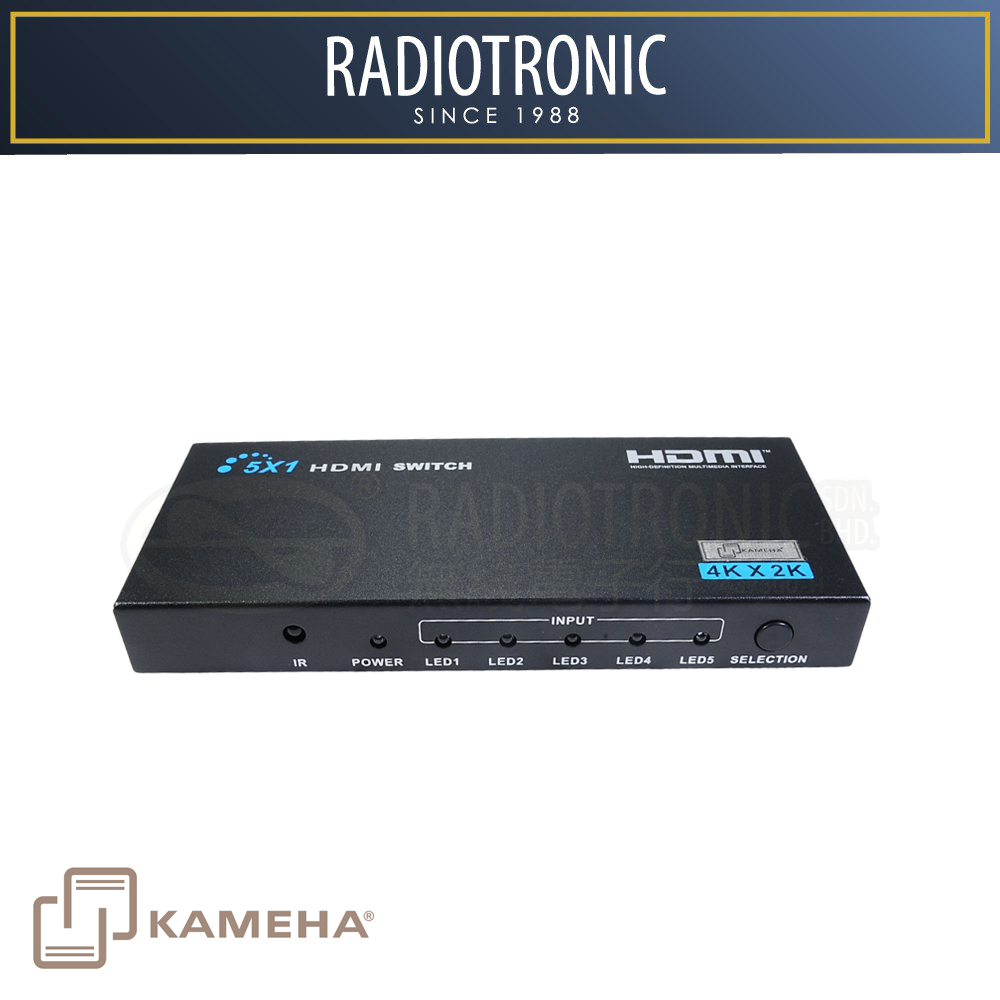

KAMEHA KA018 HDMI Switch 5 Port
RM209.00
1. Supports HDMI resolution up to 4K x 2K

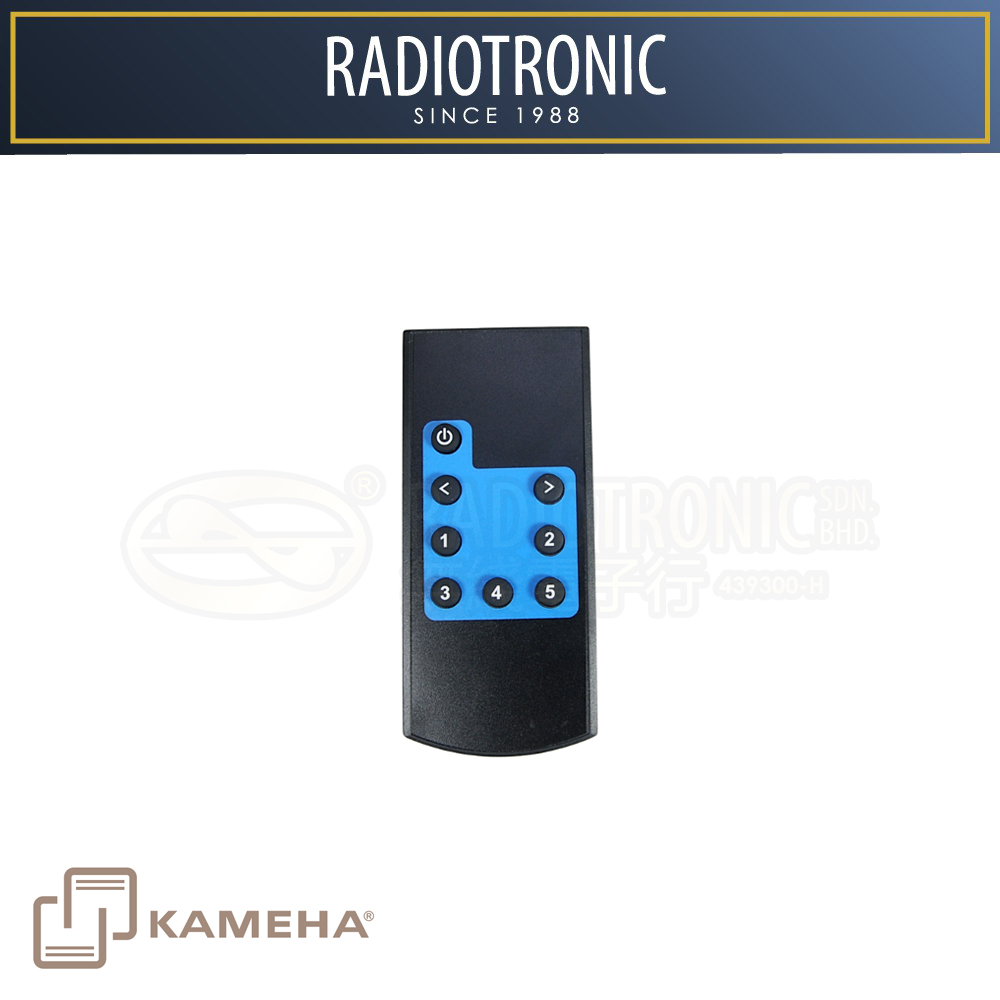

2. Input signal can be switched by remote control or the button on this device
3. HDCP pass-through
4. Support HDMI 3D signal: 1080p@24Hz, 720p@50Hz/60Hz,
5. Support compressed audio such as DTS and Dolby
6. Support uncompressed audio such as LPCM
This new 5 ports HDMI switch allows five HDMI source devices switched into one HD monitor or projector, switch button and remote control let you enjoy the ultra HD world as you want.
Features
1. Supports HDMI resolution up to 4K x 2K
2. Input signal can be switched by remote control or the button on this device
3. HDCP pass-through
4. Support HDMI 3D signal: 1080p@24Hz, 720p@50Hz/60Hz,
5. Support compressed audio such as DTS and Dolby
6. Support uncompressed audio such as LPCM
| Items | Specifications |
| Input ports | 5 x HDMI |
| Output ports | 1 x HDMI |
| TMDS voltage | 1.0 volts p-p; resistance:75Ω |
| Input and output DDC signal | 5Vp-p(TTL) |
| Operating temperature | 0℃～40℃ |
| Power supply | DC5V max power:1W |
| Dimension | 162mm(L)x69mm(W)x19mm(H) |
