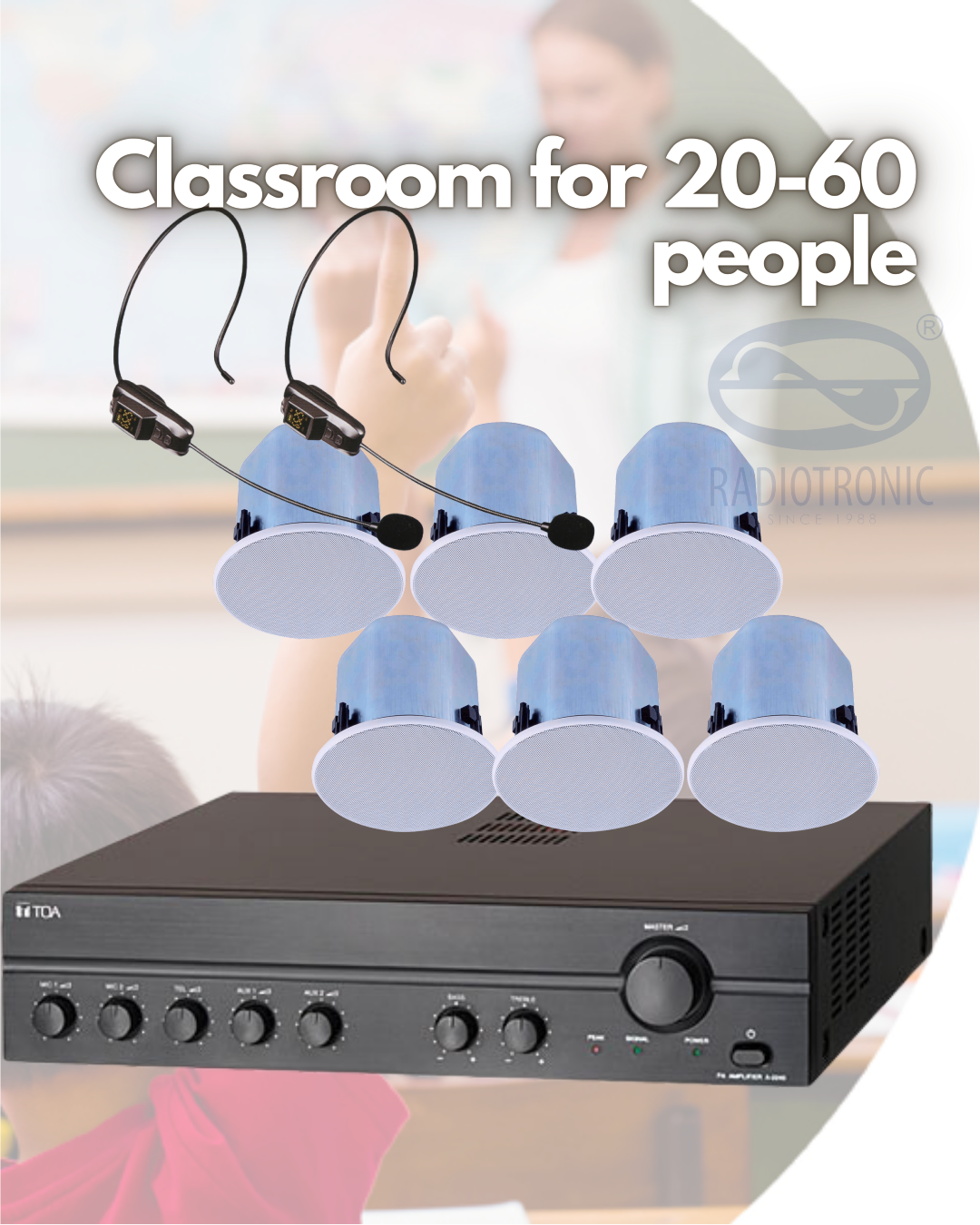

Audio System for Multimedia Room – TOA A-2240 Power Amplifier & TOA Ceiling Speaker with Headset Mic
RM6,005.50
Package include :
1 ) TOA A-2240 Mixer Power Amplifier
2) F-2322C Wide-Dispersion Ceiling Speaker x 6
3) PV Audio PV-ES382HD 2PCS Headset With Display (With MCMC) x 1
4) PV Audio Transparent PVC Twin Speaker Cable. 30/.18x2c(Pink) 100 Meter

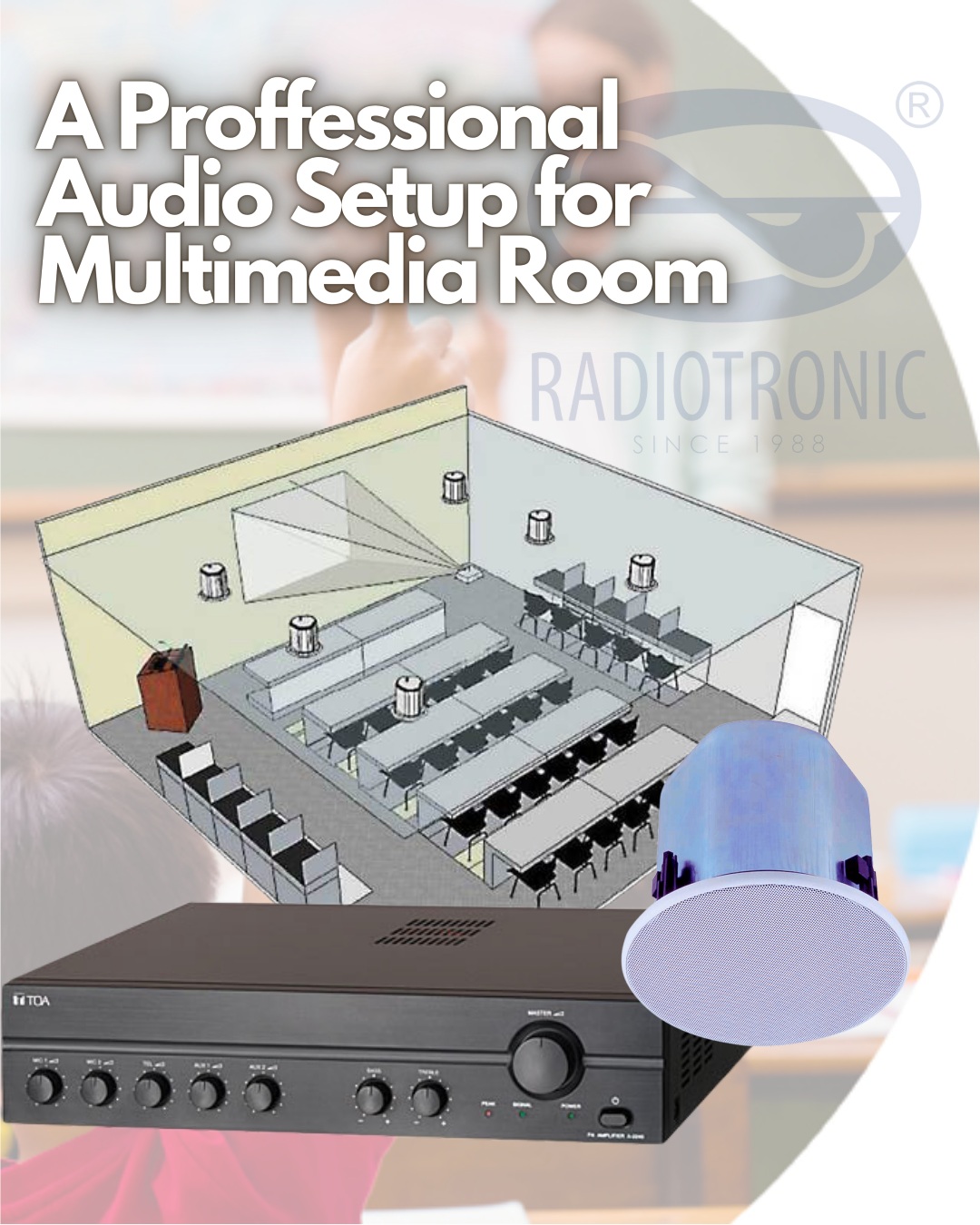

Transform your multimedia room into an immersive audio paradise with our cutting-edge audio system. Elevate your movie nights, gaming sessions, and music listening experiences to new heights with crystal-clear sound and powerful bass. Our state-of-the-art technology will transport you right into the heart of the action, making every moment unforgettable. Say goodbye to ordinary sound and step into a world where every audio detail shines. Get ready to feel the music, hear the whispers, and immerse yourself in a whole new dimension of entertainment. Upgrade your audio system today and let the magic unfold in your multimedia learning room for students and teachers.
Package include :
1 ) TOA A-2240 Mixer Power Amplifier
2) TOA F-2322C Wide-Dispersion Ceiling Speaker x 6
3) PV Audio PV-ES382HD 2PCS Headset With Display (With MCMC) x 1
4) PV Audio Transparent PVC Twin Speaker Cable. 30/.18x2c(Pink) 100 Meter
A-2240 Mixer Power Amplifier
The A-2240 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches, and large rooms.
| Power Source | 220 – 240 V AC, or 24 – 30 V DC |
|---|---|
| Rated Output | 240 W |
| Power Consumption | 238 W (EN60065), 520 W (AC operation at rated output), 15 A (DC operation at rated output) |
| Frequency Response | 50 – 20,000 Hz (±3 dB) |
| Distortion | Under 1% at 1 kHz, 1/3 rated power |
| Input | MIC 1 – 3: -60 dB*, 600 Ω, balanced, phone jack AUX 1,2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack |
| Output | Speaker out: Balanced (floating) High impedance: 42 Ω (100 V), 21 Ω (70 V) Low impedance: 4 Ω (31 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack |
| Phantom Power | DC +21 V (MIC 1) |
| S/N Ratio | Over 60 dB |
| Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| Muting | MIC 1: Mutes other input signals by 0 – 30 dB attenuation |
| Indicator | Power, signal, peak |
| Finish | Panel: ABS resin, black Case: Steel plate, black |
| Dimensions | 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54″ × 3.97″ × 14.19″) |
| Weight | 13.2 kg (29.1 lb) |

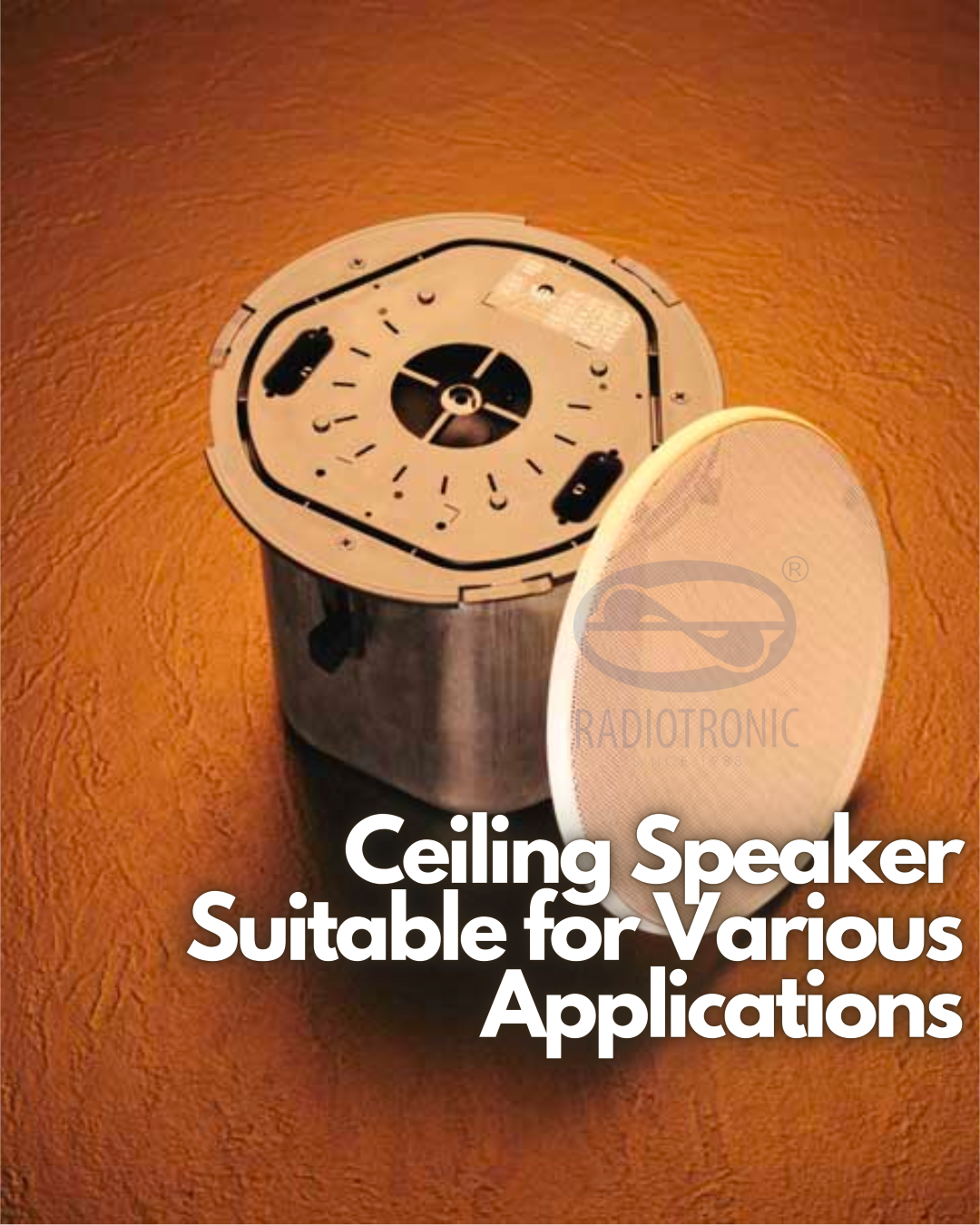

F-2322C Wide-Dispersion Ceiling Speaker
The F-2322C ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.
| Enclosure | Bass reflex type |
|---|---|
| Rated Input | 30 W (High Impedance) |
| Power Handling Capacity | Continuous pink noise: 60 W (8 Ω), 30 W (16 Ω) Continuous program: 120 W (8 Ω), 60 W (16 Ω) |
| Impedance | 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) 25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W) 8 Ω |
| Sound Pressure Level | 90 dB (1 W, 1 m) |
| Frequency Response | 70 Hz – 20 kHz (-10 dB), 50 Hz – 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | 12 cm cone-type |
| Mounting Hole | φ200 mm (Maximum ceiling thickness: 37 mm) |
| Input Terminal | Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals) |
| Usable Cable | Solid copper wire: φ0.5 – φ1.6 mm (equivalent to AWG No. 24 – 14) Stranded copper wire: 0.2 – 2.5 m㎡ (equivalent to AWG No. 24 – 14) |
| Finish | Enclosure: Steel plate, plating Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint |
| Dimensions | φ230 × 200 (D) mm |
| Weight | 3.7 kg (including mounting accessories) |
| Accessory | Panel ……1, Ceiling reinforcement ring ……1, Safety wire ……1, Paper pattern …1 |
| Option | Anchor hanging bracket: HY-AH1, Back can: HY-BC1, Tile bar bridge: HY-TB1, Trim ring: HY-TR1 |
PV Audio PV-ES382HD 2PCS Headset With Display (With MCMC)
System Parameter
✅Frequency Range : 470-694Mhz
✅Frequency Stability : ±0.005 % (-10°C – 50 °C)
✅Modulation Mode : FM
✅Max Modulation freq : ±40KHz
✅Frequency response : 40 Hz – 20 KHz
Receiver
✅RF output power : 50mW
✅Antenna : hidden external power
✅Pickup head : Dynamic cardioids directivity (handheld MIC)
condenser directivity (waistband MIC)
✅Batteries : Build in battery Lithium 3.7 v
✅Batteries life : up to 3 hours
✅S/N : =100DB
✅Effective range : +/-50M
✅Distortion : ≤0.5%
✅Work temperature : -10°C – 50°C
Transmitter
✅Receiving Mode : Super heterodyne double-conversion
✅Frequency vibration : PLL lock loop
✅Receiving Sensitivity : -93dBm
✅Audio Output : XLR balance output : 0-500 mV Φ6.35
Unbalance output : 0-500 mV
✅Power : Build in battery Lithium 3.7 V
✅Rated power consumption : 3W
✅Package Size : 300x195x60 mm
✅Package Weight : 333g
